Allwin Medical

Ultima
Direct Puncture Drainage Set

Ultima Direct Puncture Drainage Set is used for percutaneous nephrostomy drainage following the Direct-Puncture technique, particularly when there is a dilated urine collection system or hydronephrosis.

  • The catheter is back-loaded on a two-part trocar needle, straightened and then introduced directly through a skin incision
  • The procedure does away with the use of a guidewire and fascial dilators, as dilatation is not required
  • The set may also be used for cyst and abscess drainage
Categories: ,

Specifications

Order No. Fr Length
(cm)
Qty. / Box
U – DPD – 8/30 8 30 1
U – DPD – 9/30 9 30 1
U – DPD – 10/30 10 30 1
U – DPD – 12/30 12 30 1
U – DPD – 14/30 14 30 1

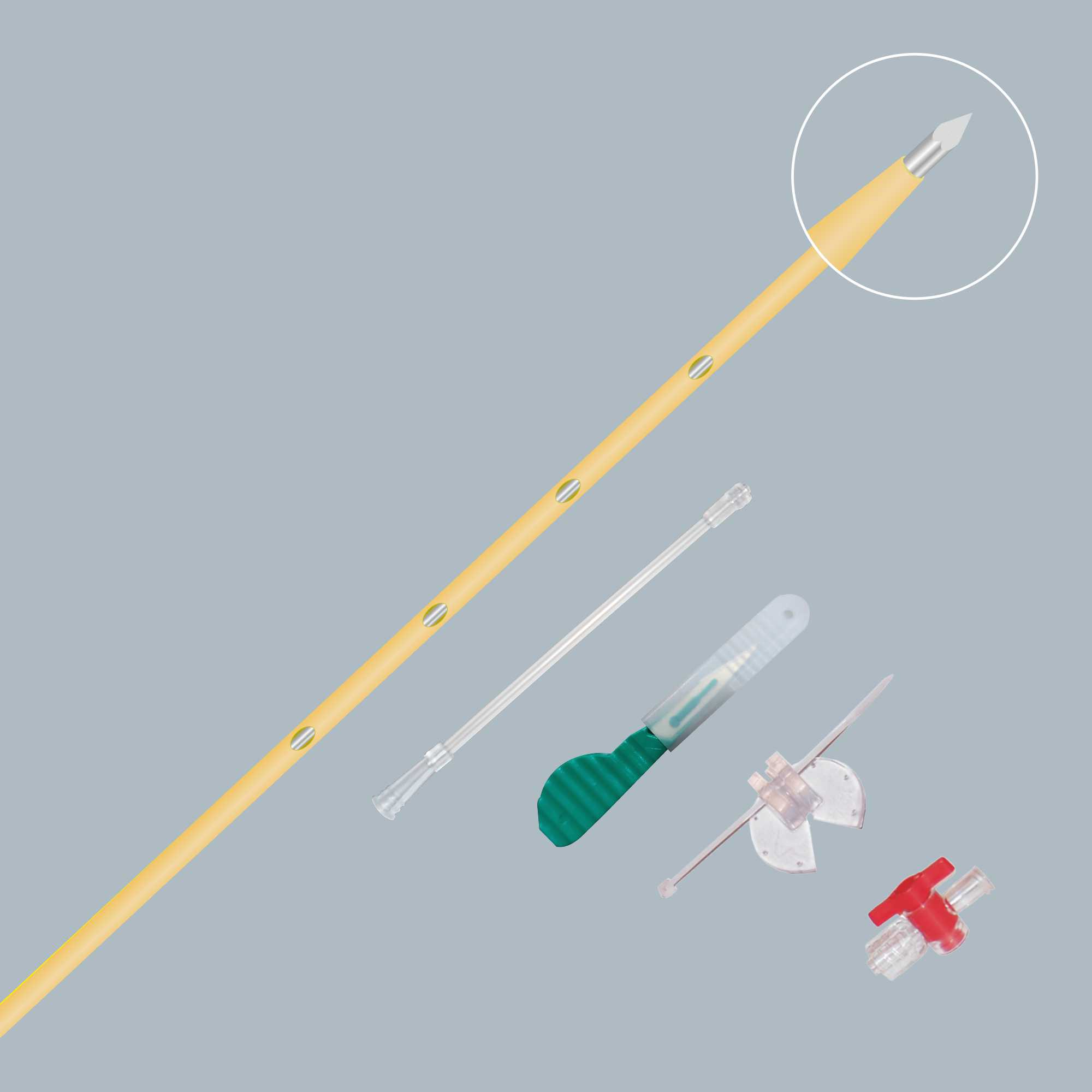

Parts & Accessories

  • Puncture Drainage Catheter 30 cm
  • Urine Bag Connector
  • Scalpel
  • Catheter Fixing Disc
  • Stopcock

Combinations :

  • With Locking Loop System : Add Suffix : LS
  • With Hydrophilic  Coating : Add Suffix : H
